Code

Description

TZI TGI

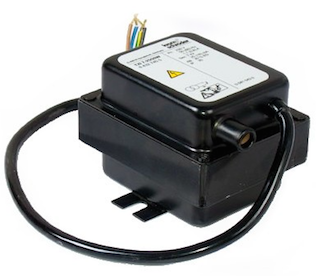

Ignition transformer Ignition transformer, enclosed

5, 7, 7.5

High voltage: 5 kV 7 kV 7.5kV

-12 -15 -20 -25

Output current: 12 mA at 50 Hz (9 mA at 60 Hz) 15 mA at 50 Hz (11 mA at 60 Hz) 20 mA at 50 Hz (15 mA at 60 Hz) 25 mA at 50 Hz (18 mA at 60 Hz)

/20 /33 /100

Duty cycle: 20% 33% 100%

R W

Mains voltage: 115 V 230 V
