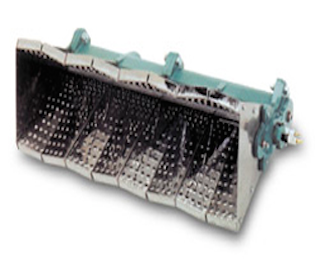

Eclipse AH MA
| Current Version: | 2.2 |
| Type: | Nozzle Mixing |
| Number of Sizes: | Modular |
| Capacity Range: | 1,200,000 Btu/hr/LF 1150 kW/m |
| Turndown: | 30:1 |
| Max. Upstream Air Temperature: | 450°F, 232°C |
| Max. Downstream Air Temperature: | 850°F, 454°C |
| Fuels: | Natural Gas, Propane, Butane |
| Typical Applications: | Make-up air heating Drying Processes |
| Key Attributes: | Robust, Reliable performance. Compact Modular design. |
