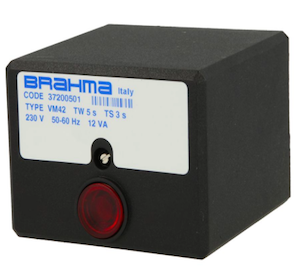

Brahma Burner Controller
Model Purge time Safe time Control Electric eye VM42 30 3 2 Ion detection VM41 30 3 1 Ion detection VE3. 2 30 2 2 Ion detection MF2 30 2 2 Ion detection SM592. 2 1.5 10 2 Ion detection SM152. 2 5 10 1 Ion detection CM191. 2 1.5 10 2 Ion detection CM381 Ion detection CE11V 1.5…0.4 3…12 Ion detection SR3 30 3 2 Ion detection GF2 15 10 FC7 / FC8 GF3 20 5 2 FC7 / FC8 0R3/B 20 5 2 FC7 / FC8 G22 15 10 1 FC7 / FC8 GR2 20 5 2 FC11 / 13

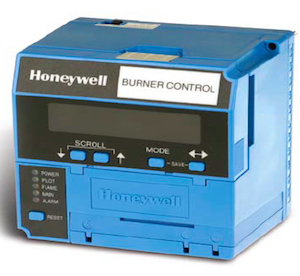

Honeywell Burner Control EC/RM7800 Series
7800 series combustion controller EC/RM7823A EC/RM7890A EC/RM7890B EC/RM7810A EC/RM7830A EC/RM7850A RM7800L/B17840L RM7885

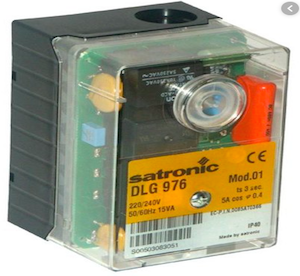

Honeywell Satronic Burner Control
Satronic combustion controller DK0970 single stage fuel controller < 30kg/h DK0972 Dual stage fuel controller < 30kg/h DM0976 Dual stage fuel controller > 30kg/h TF830. 3 single stage fuel controller < 30kg/h TF832. 3 Dual stage fuel controller < 30kg/h TF834. 3 Dual stage fuel controller < 30kg/h MM0872 Dual stage fuel controller > 30kg/h DKG972 Dual stage, atmospheric gas controller DMG970 Dual stage, blast gas controller DMG971 Dual stage,...

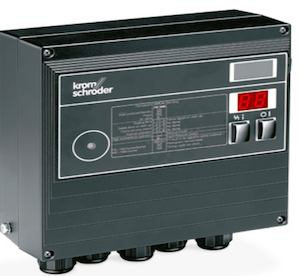

Kromschroder Burner Control Unit
Burner controller Flame detection Start time (s) Malfunction BCU 440 Ionised 3-10 Faulty lock BCU 460 Ion or UV 3-10 Faulty lock BCU 480 Ion or UV 3-10 Faulty lock Automatic burner control unit, ignition transformer, indicators and operating controls in a space-saving metal housing which replaces the local burner control cabinet For directly ignited burners of up to 350 kW in continuous operation pursuant...

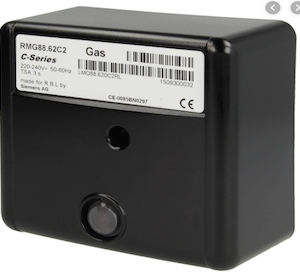

Riello Burner Controller
Model Function description 530SE 40G series fuel burner 522SE RL series fuel burner 503SE PRESS series fuel burner RM088. 53A2 PRESS series fuel burner 508SE 40GS20 and RS series gas burner RMG88. 62A2 40GS20 and RS series gas burner MMI813 RS series gas burner 552SE GULLIVER series fuel burner 569SE BS series gas burner 525SE/3 GS5 gas burner MG557/3 GS5 gas burner RMG/M88. 62A2 RS/M Proportional gas burner

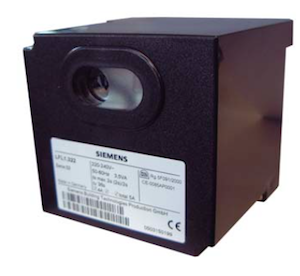

Siemens Burner Controller LFL & LAL series
Burner controls For gas, oil or dual-fuel forced draft burners of medium to high capacity For multistage or modulating burners in intermittent operation with checked air damper control Flame supervision– with UV detectors QRA2 / QRA4 / QRA10 – and ionization probe Model t1 (min) TSA (max) t3n t3 t4 t5 t6 t7 LAL 1.25 22.5 5 15 2.5 7.5 7.5 15 2.5 LAL2.14 10 4 15 2 8 4 15 2 LAL2.25 22.5 5 15 2.5 7.5 7.5 15 2.5 LAL2.65 67.5 5 2.5 7.5 7.5 2.5 LFL1.122 10 2 6 4 4 10 2 30 LFL1.133 9 3 6 3 3 14.5 3 39 LFL1.322 36 2 10 4 10 12 2 60 LFL1.133 31.5 3 12 6 12 18 3 72 LFL1.135 37.5 2.5 12.5 5 12.5 15 2.5 78 LFL1.622 66 2 10 4 10 12 2 96 LFL1.635 67.5 2.5 12.5 5 12.5 15 2.5 105

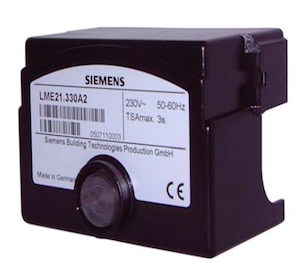

Siemens Burner Controller LME & LGB series
Burner controls for the supervision of 1- or 2-stage gas or gas/oil burners of small to medium capacity, with or without fan in intermittent operation. Model tw (min) TSA (max) t1 (min) t10 (min) t11 (max) t12 (max) Replace Model LME11.330A2 2.5 3 30 5 LMG21.130B27 LME21.230A2 2.5 3 20 5 LGB21.230A27 LME21.330A2 2.5 3 30 5 LGB21.330A27 LME21.350A2 2.5 5 30 5 LMG21.350A27 LME21.430A2 2.5 5 30 5 LME22.232A2 2.5 3 20 3 16.5 16.5 LGB22.230A27 LME22.233A2 2.5 3 20 3 30 30 LMG22.230B27 LME22.331A2 2.5 3 20 3 12 12 LGB22.330A27 LME23.331A2 2.5 3 30 3 12 12 LGB32.330A27 LME44.256A2 16 5 9 LGB41.255A27 LGB21.230A27 8 3 15 5 LGB21.330A27 8 4 30 5 LGB21.350A27 8 5 30 5 LGB22.230B27 9 3 20 3 16.5 16.5 LGB22.330A27 9 4 30 3 12 12 LGB32.330A27 9 4 30 3 12 12 LGB41.255A27 18 5 / 5

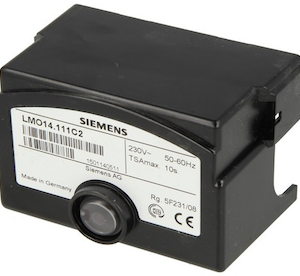

Siemens Burner Controller LMO & LOA series
Model tw (min) t1 (min) t1' TSA (max) Power supply (V) Remote reset Corresponding model LM014.111B2 5 15 16 10 110 * L0A24.171B17 LM014.113B2 5 15 16 10 110 * L0A24.173B17 LM024.111B2 5 15 16 10 220 * L0A24.171B27 LM024.113B2 5 15 16 10 220 * L0A24.173B27 LM024.255C2 5 25 26 5 220 * LM044.255C2 5 25 26 5 220 * L0A44.252A27 L0A24.171B17 13 10 110 L0A24.171B27 13 10 220 L0A24.173A27 13 10 220 L0A26.171B27 13 10 220 * L0A28.171B27 13 10 L0A44.252A27 25 5 220 * stop production

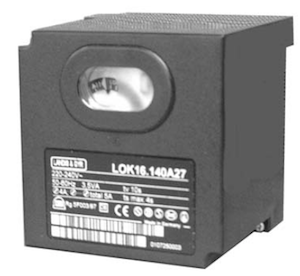

Siemens Burner Controller LOK & LGK series
Model t1 (min) TSA (max) t3n t3 t4 t5 t6 t7 t8 LOK16.140A27 10 4 10 2 8 4 10 2 30 LOK16.250A27 22.5 5 15 2.5 7.5 7.5 15 2.5 47.5 LOK16.650A27 67.5 5 15 2.5 7.5 7.5 15 2.5 47.5 LGK16.122A27 10 2 6 4 4 4 10 2 30 LGK16.133A27 9 3 6 3 3 3 14.5 3 29 LGK16.322A27 36 2 10 4 10 10 12 2 66 LGK16.333A27 31.5 3 12 6 12 12 18 3 72 LGK16.335A27 37.5 2.5 12.5 5 12.5 12.5 15 2.5 75 LGK16.622A27 66 2 10 4 10 10 12 2 96 LGK16.635A27 67.5 2.5 12.5 5 12.5 12.5 15 2.5 105

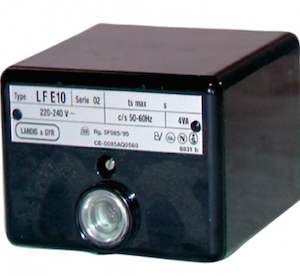

Siemens Controller LAE10 & LFE10
Model Function LFE50 Control gas or fuel flame LFE50-AC110V Control gas or fuel flame LFE10 Control fuel flame LAE10 Control gas or fuel flame

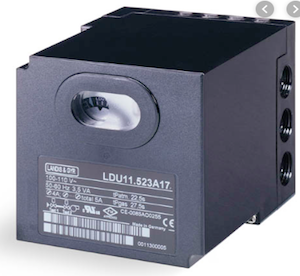

Siemens Controller LDU11
Model Operating voltage (V) Hertz T3 T4 LDU11.323A17 AC100..110V 50…60Hz 2.5s 2.5s LDU11.523A27 AC220..240V 50…60Hz 2.5s 2.5s LDU11.523A17 AC100..110V 50…60Hz 5s 5s LDU11.523A27 AC220..240V 50…60Hz 5s 5s

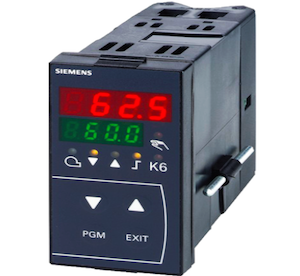

Siemens Temperature and Pressure Controller RWF Series
Proportional Adjuster Model RWF40.000A97 RWF40.001A97 RWF40.002A97Loading
